Overview of ANPR license plate reading cameras for security and traffic analysis.

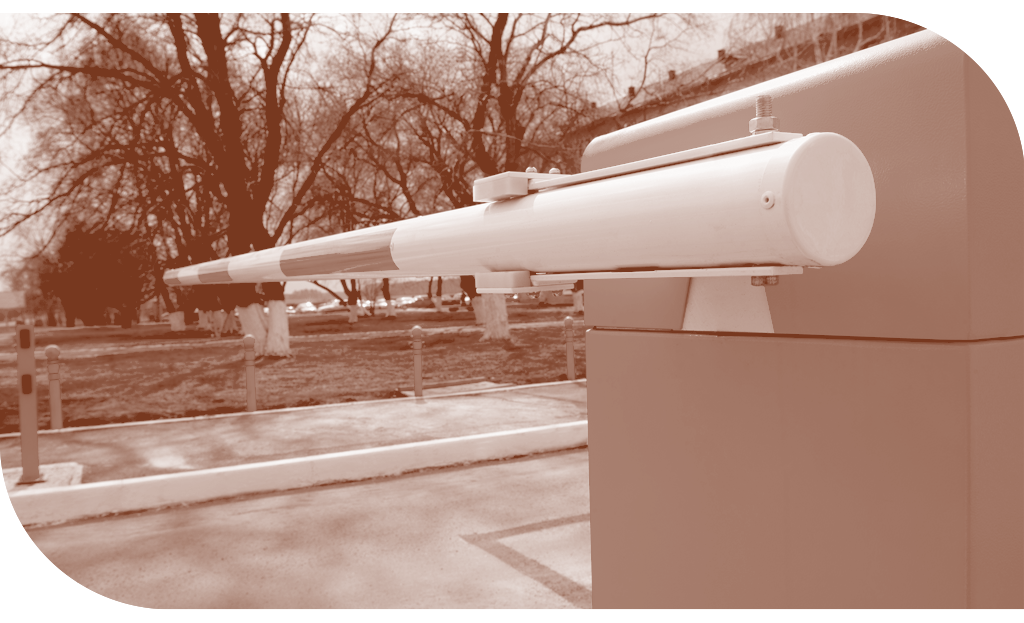

Parking & Access

Cameras suitable for detecting slow-moving and stationary vehicle traffic, ideal for access control installations, barrier and gate opening.
Parking2

A0B 2MP@60fps
70Km/h (1 Lane)

A1B 2MP@60fps
160Km/h (1 Lane)

A2B 2MP@60fps
250 Km/h (1 Lane)

Bispectral technology (1 optic)
OCR + COLOR sensor:

2 MP (1920 x 1080) CMOS COLOR + IR (bispectral) rolling shutter sensor

2 MP (1920 x 1080) CMOS COLOR + IR (bispectral) global shutter sensor

2 MP (1920 x 1080) CMOS COLOR + IR (bispectral) global shutter sensor

Optics:

Standard S mount fixed lens

Standard varifocal lens, 8-50 mm

Standard varifocal lens, 8-50 mm

Integrated IR illuminator:

n. 4 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

n. 8 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

n. 8 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

Other:
Click on the products to access the related complete technical data sheets

ANPR Homeland Security

Cameras suitable for urban contexts for urban traffic analysis and road safety management.
Homeland1

Bispectral

A1B 2MP@60fps
160Km/h (1 Lane)

A2B 2MP@60fps
250 Km/h (1 Lane)

A3B 2MP@75fps
250Km/h (2 Lanes without motorcycles)

A5B 5MP@75fps ANPR
250 Km/h (2 Lanes)

Sensor OCR + COLOR:

2 MP (1920 x 1080) CMOS COLOR + IR (bispectral) rolling shutter sensor

2 MP (1920 x 1080) CMOS COLOR + IR (bispectral) global shutter sensor

3 MP CMOS COLOR + IR (bispectral) global shutter sensor

5 MP (2560 x 1936) CMOS COLOR + IR (bispectral) global shutter sensor

Double optics

A2D2 2/2MP@75fps
Multifunctional 250Km/h

A3D2 3/2MP@75/60fps
Multifunctional 250Km/h

A5D2 5/2MP@75/60fps
Multifunctional 250Km/h

A5D5 5/5MP@75/75fps
Multifunctional 250Km/h

A5D8 5/8MP@75/75fps
Multifunctional 250Km/h

Sensor OCR:

2 MP (1920 x 1080) CMOS IR global shutter sensor

3 MP CMOS IR global shutter sensor

5 MP (2560 x 1936) CMOS IR global shutter sensor

5 MP (2560 x 1936) CMOS IR global shutter sensor

5 MP (2560 x 1936) CMOS IR global shutter sensor

Sensor COLOR:

2 MP (1920 x 1080) CMOS COLOR rolling shutter sensor

2 MP (1920 x 1080) CMOS COLOR rolling shutter sensor

2 MP (1920 x 1080) CMOS COLOR rolling shutter sensor

5 MP (2560 x 1936) CMOS COLOR rolling shutter sensor

8 MP CMOS COLOR rolling shutter sensor

Other:
Click on the products to access the related complete technical data sheets

Highway & Tolling - High performance

High-performance cameras suitable for detection in high-speed situations such as highways or high-traffic bypasses.
Highway1

A5D5HP 5/5MP@75/60fps
Multifunctional 250Km/h
(2 Lanes)

A5D8HP 5/8MP@75/60fps
Multifunctional 250Km/h
(2 Lanes)

A12D5HP 12/5MP@42/60fps
Multifunctional 320Km/h
(3 Lanes)

A12D8HP 12/8MP@42/60fps
Multifunctional 320Km/h
(3 Lanes)

Dual-optic technology
OCR sensor:

5 MP (2560 x 1936) CMOS IR global shutter sensor

5 MP (2560 x 1936) CMOS IR global shutter sensor

12 MP CMOS IR global shutter sensor

12 MP CMOS IR global shutter sensor

Color sensor:

5 MP (2560 x 1936) CMOS COLOR rolling shutter sensor

8 MP CMOS COLOR rolling shutter sensor

5 MP (2560 x 1936) CMOS COLOR rolling shutter sensor

8 MP CMOS COLOR rolling shutter sensor

Integrated IR illuminator :

n. 10 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

n. 10 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

n. 2 x 10 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

n. 2 x 10 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)

Other:
Click on the products to access the related complete technical data sheets

Enforcement

These products are particularly suitable for enforcement applications.

 They come equipped with onboard Red Light enforcement applications and can be easily connected to certified radar devices for speed enforcement applications.

Enforcement2
A5B 5MP@75fps ANPR 250 Km/h (2 Lanes)

A5D8 5/8MP@75/75fps
Multifunctional 250Km/h

A5D8 5/8MP@75/75fps
Multifunctional 250Km/h

A12D8HP 12/8MP@42/60fps Multifunctional 320Km/h (3 Lanes)

Smart Roads

Vigilate introduces the Smartekpole, a multifunctional pole suitable for Smart Road and Smart City applications. It is equipped with all license plate reading technologies and Cv2X devices to enable modern infrastructure to advance towards autonomous driving.
SmartRoad1

Coming soon...
