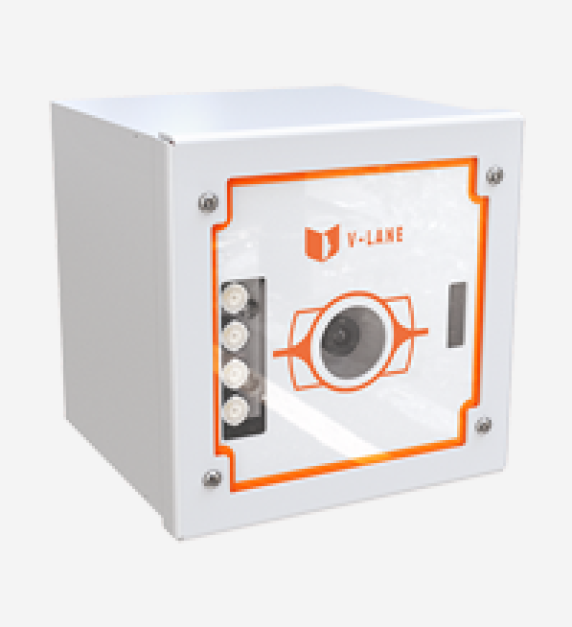

V-LANE A0B 2MPX@60 fps

70 Km/h (1 Lane)

Analysis and recognition
V-LANE A0B is the intelligent license plate reading camera for barriers, gates, passages with low speed passages. V-LANE A0B is able to read license plates of moving vehicles, in any lighting condition. Performance: V-LANE A0B detects 60 images per second within which it analyzes, identifies and validates the license plates of the vehicles present. This result obtained through the use of sophisticated software makes it possible to read the license plate of vehicles in transit at speeds of up to 70 km/h in free-run mode (without an external trigger device).
Data
Data and images can be stored directly locally, sent to the customer's supervision system or sent to the v-SUITE supervision platform. The device has FTP, XML-RPC (on HTTPS) and serial transmission protocols. Software Optical Character Recognition (OCR) library complete with 41 countries in Europe, 13 Asia, 6 Africa, 5 South America and special plates such as Trailers, Kemler ADR, Kemler ADR Empty, Trams (Police, Army, Ambulance, Civil Protection... ).
Classification
The camera is equipped with a video classification software capable of recognizing vehicle types with 11 + 1 classes including (Cars, Trucks, Trucks with trailers, Motor vehicles, Motorcycles, Mopeds, Buses, Mini vans, Big vans, Box bodies, Caravan, unknown); it is also able to identify the dominant color among a range of 11 colors + 1 (black, white, gray, red, blue, yellow, green, orange, pink, purple, cyan, unknown). v-Lane is equipped with gate AID algorithms for traffic control (stationary vehicle, wrong-way vehicle, slow traffic, queue).
Data security
The storage and transmission of data generated by the product takes place using highly reliable and secure protocols, guaranteeing the highest level of inviolability and privacy. Vigilate complies with the most restrictive regulations on data security such as ISO27001:2022 and ISDP10003:2018 - Privacy by Default and Privacy by Design.
Application examples
Access control for public and private car parks Territorial and traffic control Access control for residential areas Tolling systems

Please note that the technical data, information and images contained in this document are for reference only. Vigilate S.r.l. reserves the right to change the data, drawings and information here at any time and without notice contained.

All trademarks belong to their respective owners; third-party trademarks, logos, product names, trade names, corporate and company names mentioned are trademarks owned by their respective owners or registered trademarks of other companies and have been used for explanatory purposes only, without any intent to violate the Copyright rights.

  • 1 Lanes coverage
  • Infrared + color (bispectral) single head camera
  • Plate reading up to 70 km/h in free-run
  • Integrated IR illuminator with stroboscopic LEDs
  • 2 Mpixel resolution (context + OCR)
  • OCR library on board with 41 countries in Europe, 13 Asia, 6 Africa, 5 South America and special plates such as Trailers, Kemler ADR, Kemler ADR Empty, Tram
  • Daytime classification of vehicles by type in 11 + 1 (Cars, Trucks, Trucks with trailers, Motor vehicles, Motorcycles, Mopeds, Buses, Mini vans, Big vans, Flatbed trucks, Caravans, unknown)
  • Night classification of vehicles by type in 4 classes +1 (trucks, buses, cars, motorcycles and unknown)
  • Daytime classification of vehicles by color in 11 classes + 1 (black, white, grey, red, blue, yellow, green, orange, pink, purple, cyan, unknown)
  • Transit speed estimation function
  • Black & White lists
  • ONVIF Profile S
  • Local NVR function for storage continuous recording of camera video streaming and creation of micro movies on vehicle transits
  • Cloud ready
  • Compatible with the Vigilate v-SUITE general supervision platform

Please note that the technical data, information and images contained in this document are for reference only. Vigilate S.r.l. reserves the right to change the data, drawings and information here at any time and without notice contained.

All trademarks belong to their respective owners; third-party trademarks, logos, product names, trade names, corporate and company names mentioned are trademarks owned by their respective owners or registered trademarks of other companies and have been used for explanatory purposes only, without any intent to violate the Copyright rights.

CCTV

The device can be used as an NVR system, the duration of the recordings can be set by the user in order to respect the privacy requirements relating to the installation carried out.

OCR

OCR library on board with 41 European, 13 Asians, 6 Africans, 5 South American nations and special license plates such as Trailers, Kemler ADR, Kemler ADR Empty, Tram.
The OCR algorithm boasts one of the highest recognition percentages on the market.

Optical group
Sensor (OCR + COLOR)2 MP (1920 x 1080) CMOS COLOR + IR (bispectral) global shutter sensor
Frame rateUp to 60 fps
OpticsStandard S mount fixed lens
Illuminator
Integrated IR illuminatorn. 4 LED IR (CLASS 1M CEI EN 69825-1 ED. 4, 850 nm IR LED)
HW features
ProcessorQuad-core + HW video encoder unit + Neural coprocessor
Memory16 GB e-MMC Flash
RAM1 GB
S.O.Linux
Storage DiskHD SSD 128 GB (up to 2 TB)
I/ON. 3 input opto-isolated
N. 2 output relè
PortsN.1 USB port
N.1 RS-485 port
N.1 10/100 Mbps Ethernet port
SW features
Operating modeContinuously acquisition (free-run)
On request (by SW trigger or HW trigger)
Both modes can draw on the two local lists that can be configured locally or by remote synchronization with the FTP server
Real-time diagnosticsCPU temperature
Mainboard temperature
IR illumination module operation
Lighting module current peaks
Capture status of physically connected sensors
Input current level (power port)
Input voltage level (power port)
Camera tilt angle
Internal humidity level
CPU consumption
RAM consumption
Storage disks status
Utilization of the 4 physical cores (CPU monitoring)
Check status of operational threads
Monitoring of analysis times and operating status of active algorithms
Generation of any alarms (local and possibly remote) in the face of anomalies detected
Supported sending protocolsTCP (in binary, XML, string formats)
TCP Milestone
FTP (imgs + text data in *.txt/*.csv)
RPC-XML over HTTP / HTTPS (BASIC or EXTENDED message)
Custom Protocol (message configurable via template and sendable by HTTP POST / HTTPS POST /TCP protocols)
Serial (on RS 485 port)
Wiegand (need to install SC20 converter)
Xentinel message (over HTTP)
v-SUITE message (over HTTP / HTTPS)
Supported communication protocolsTCP/IP
UDP
HTTP
HTTPS
FTP
FTPS
RTP/RTSP
openVPN
ONVIF (S- profile)
NTP
SNMP
Data protectionPossibility to activate the management of the web configurator by HTTPS connection
FTPS encryption on TLS/SSL protocol
AES-256-ECB encryption for data and images saved locally and/or sent via the supported protocols
Image hash using SHA-512 algorithm and possible encryption of the signature itself using AES-256-ECB
Totally GDPR compliant storage management with periodic deletion of the history
Cockpit masking function (in case of front detection of vehicles) in order to ensure respect for privacy
Possibility to connect the camera inside an openVPN with certificate installed directly on board
Advanced management of the firewall on the machine with the possibility of disabling access to the local servers present on the machine (FTP server, ONVIF server, SNMP server, service ports)
Power Supply
Supported power supply24VDC (1,25 A) or +12VDC (2,5 A) or UPoE 60W
Consumption8W typically
General characteristics
Dimensions450 x 140 x 150 mm
Weight2,6 Kg
Operating temperature- 30°; +60°
HumidityUp to 90%
ProtectionIP67 - class IK10 (on request)
Certifications
OCR library:Certified high reliability, the library has been validated several times by UNI 10772:2016 class A for all vehicle classes
Classification algorithms:The percentages of correct classification depend on compliance with the installation geometry but are above 90% regardless of the external environmental conditions
AID algorithm:The instantaneous speed estimation by video analysis and consequently the AID algorithm with the various supported features are highly reliable as demonstrated by numerous field tests in the presence of approved systems for speed estimation for sanctioning purposes.
Regulations
Regulations complied withEN 55032:2015, EN 55035:2017, EN 50561-1:2013
EN 62368-1 (EN 62368-1:2014+A11:2017)
EN 60068-2-14:Nb 2011-11
EN 60068-2-78:2013-11
EN 62471:2010
EN60529:1991+A1:2000+A2:2013
UE Regulation 2016/679 (GDPR)
Optionals
Wall bracket
Storage disk capacity extension up to 128 GB
Column case

Please note that the technical data, information and images contained in this document are for reference only. Vigilate S.r.l. reserves the right to change the data, drawings and information here at any time and without notice contained.

All trademarks belong to their respective owners; third-party trademarks, logos, product names, trade names, corporate and company names mentioned are trademarks owned by their respective owners or registered trademarks of other companies and have been used for explanatory purposes only, without any intent to violate the Copyright rights.
